Logger models

Overview

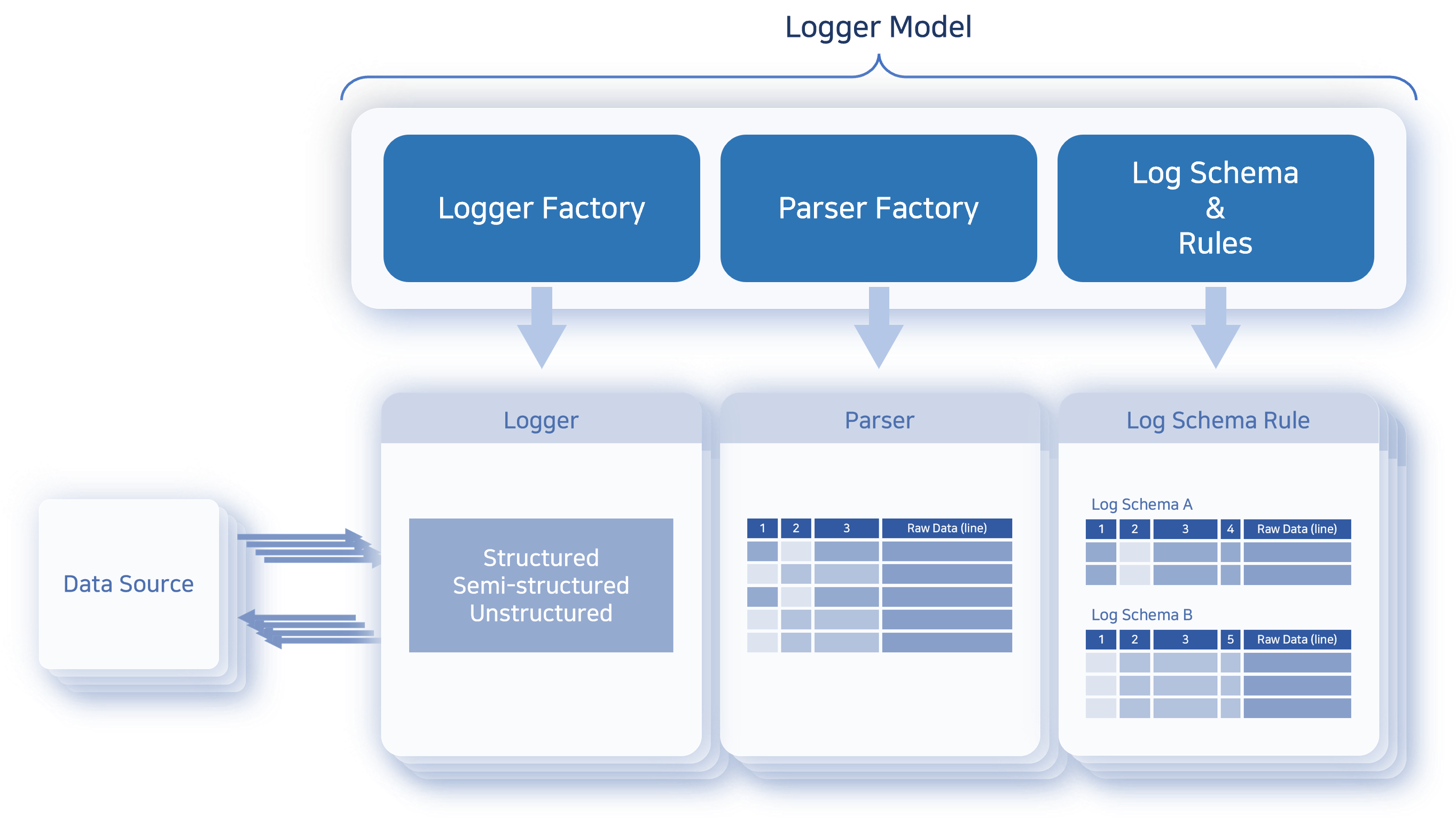

A logger model serves as a roadmap that defines the entire data processing pipeline—from data collection to normalization. It specifies how the raw data should be collected by the logger, how the collected data should be parsed, and how the parsed data should be normalized.

In some logger models, a parser may not be necessary; This is typically the case when the log data is already in a structured format and does not require additional parsing. For example, data stored in a database is already separated by fields, so no separate parsing step is needed.

Logger Models: Base vs App

Logger models can be categorized as either base or app logger models. Similar to parsers, administrators rarely need to manually configure logger models themselves.

Base Logger Model

Base logger models are available in Logpresso Sonar even without installing any apps. Initially, the platform provides the following two base logger models. The product installs them in Korean regardless of the language chosen at installation or the console language, so the English console shows the model name in Korean as well; the English in parentheses is an explanation added by this document.

Name	Description
WTMP	Defines how wtmp log files are collected and normalized.
윈도우 XML 이벤트 로그 (Windows XML Event Log)	Defines how to collect and normalize event logs from Windows.

Note

The Windows XML event log collection model is only compatible with environments using Windows Sentry.

Below is a list of base logger model types available in Logpresso Sonar. The Logger-specific Settings differ depending on the logger type.

The following types are Sentry-only logger types. They appear in the Type list only while a Sentry running that operating system is connected.

App Logger Model

Most logger models are provided along with app installations. App logger models come preconfigured with all the settings required to extract fields from data collected from target systems.

Caution

Do not modify or delete app logger models, as this may disrupt the functionality of the associated app.

Log Schema Rules (Normalization Rules)

The logger model provides normalization rules to normalize logs based on the log schema. A normalization rule consists of a log schema, a query used to transform the input log data, and a refresh interval.

Since a single stream of log data may contain multiple types of log records, normalization rules should be designed to be mutually exclusive and collectively exhaustive, in line with the MECE (Mutually Exclusive, Collectively Exhaustive) principle. For example, if a log source contains three types of records—A, B, and C—the logger model must include three normalization rules, each corresponding to one of the record types. Logs from Palo Alto Networks firewalls, for instance, contain both session logs and intrusion detection logs. Each type must be normalized using a schema appropriate for its structure.

To accommodate variations in log formats and potential parsing errors, it is also important to include a normalization rule that captures records which do not match any other rule or cannot be normalized.

Search Logger Model

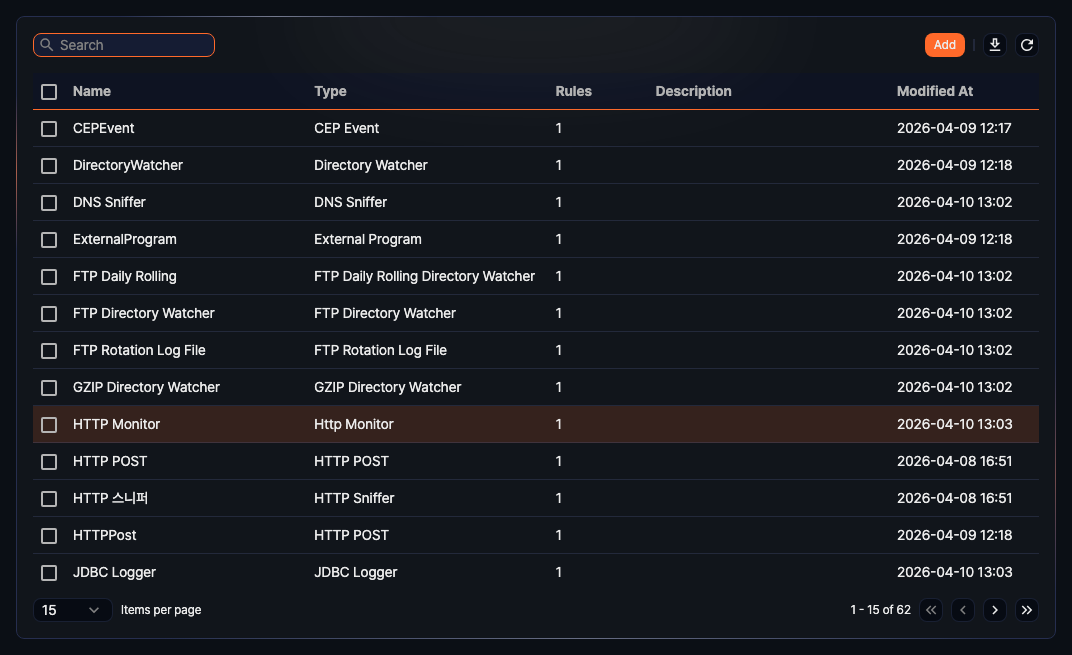

You can view the list of logger models in Loggers > Logger Models.

• App: Icon of the app that provides the logger model. Logger models added by an administrator show the default icon.
• Name: Name used to identify the logger model
• Type: Type of logger to run
• Rules: Number of log schema rules defined for the logger model
• Description: Additional information about the logger model
• Modified At: Date the logger model was created or last modified

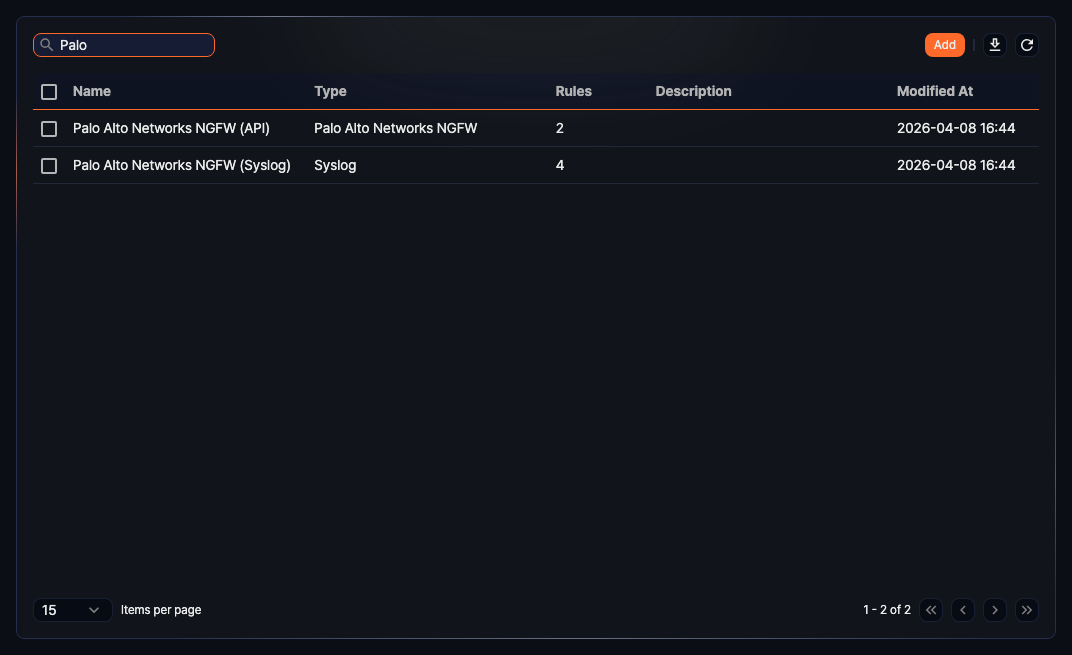

To find a specific logger model in the list, use the search tool in the toolbar. The search tool finds logger models containing the keywords you entered in Name. The search is not case-sensitive.

Add Logger Model

While app logger model suffice for most environments, there are cases where you may need to create a custom one. If a new logger model is needed, you can create and use a custom one.

To add a logger model:

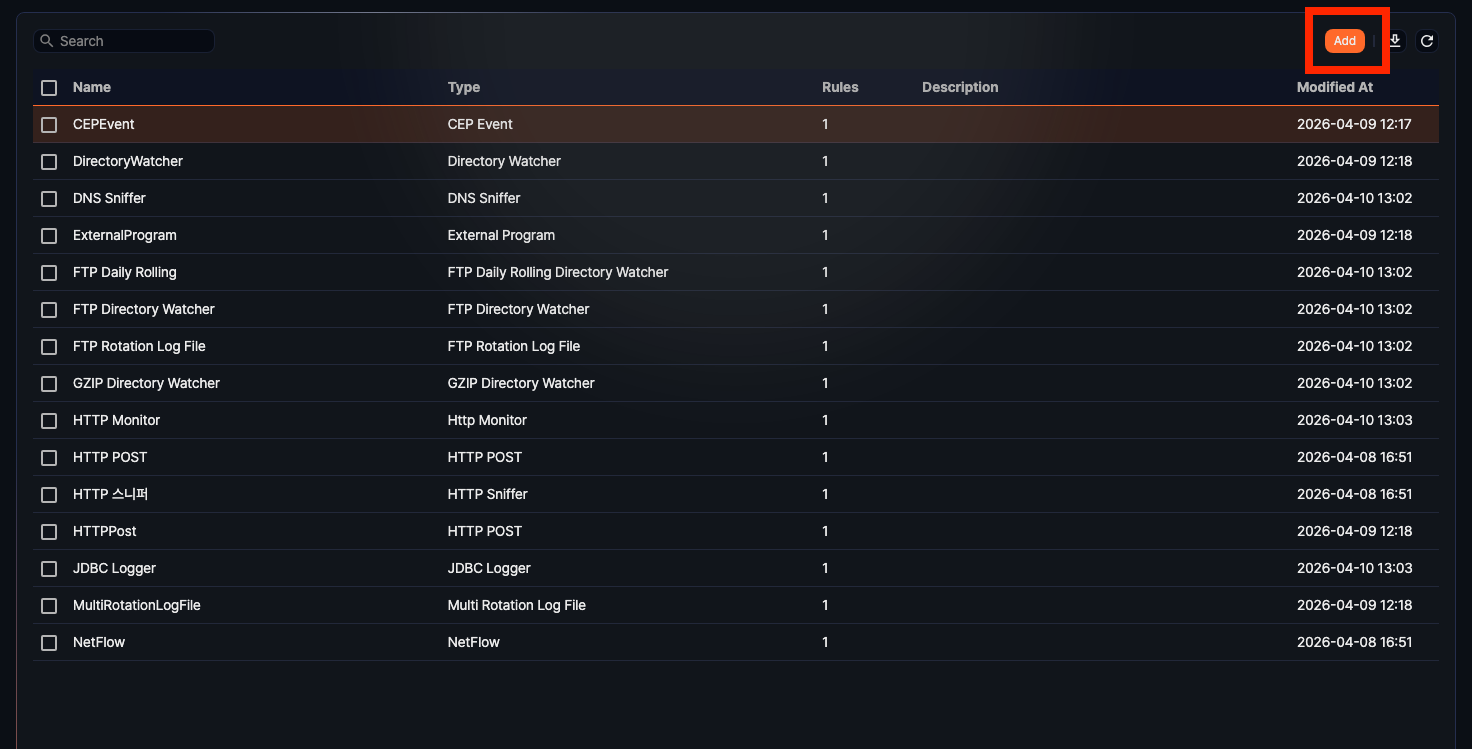

1. Go to Logger > Logger Models, and click Add in the toolbar.



2. Enter or select the required values for Config. and Log Schema Rules, then click OK in the upper-right corner.

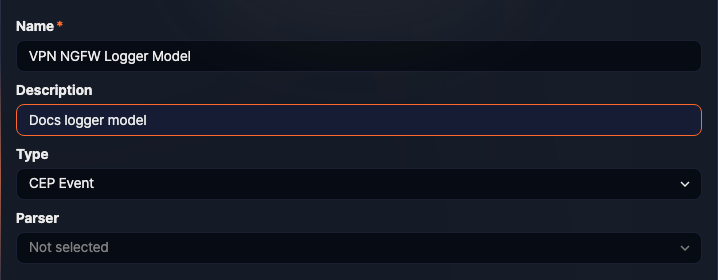

Config.

Enter or select a Name, Description, Type, and Parser for the logger model.

• Name: Name to identify the logger model in the web console
• Description: Description of the logger model. Use this field to provide additional details.
• Type: Type of logger to run (default: the first item in the type list).
• Parser: Name of the parser to process data from the logger (default: none). If the input data is already structured (e.g., when the type is JDBC logger), you may not need to select a parser.

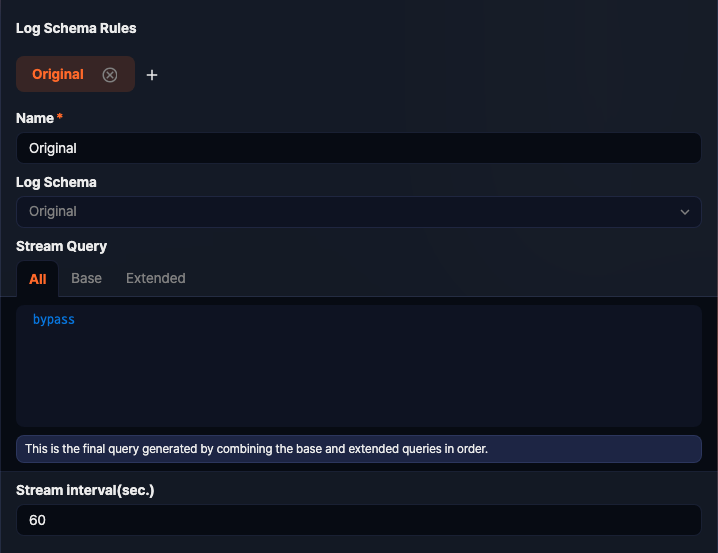

Log Schema Rules (Normalization Rules)

You can configure one or more normalization rules. Each normalization rule must classify input records without overlap and ensure no records are missed, adhering to the principles of being mutually exclusive and collectively exhaustive.

• To add a log schema rule, click the + tab.
• To delete a log schema rule, click the X in the tab.

• Name: Name to identify the log schema rule
• Log Schema: log schema to apply

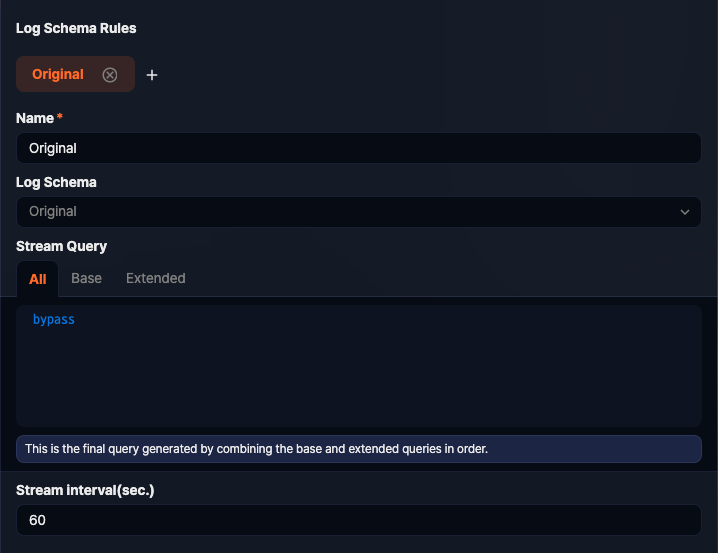

• Stream Query: A preprocessing query used to map part or all of the parsed data to the log schema. It is divided into the following tabs.
  • Base: The base query that maps parser-applied data to the log schema. The base query of a saved rule is locked because an app update may overwrite it. Click the padlock icon to edit it.
  • Extended: An extended query appended after the base query. Enter the processing added by an administrator here.
  • Common: A common query appended after the extended query and applied to all log schema rules except the original and unknown rules. Shown only for rules with a log schema.
  • All: The final query generated by combining the base, extended, and common queries in order (read-only). This tab is shown first when you open a rule.
  • Query statements typically filter input data based on specific field values using the search command.
  • You may also write a query that renames input fields to match the log schema or assigns values to empty fields.
• Stream Interval: The interval at which the stream query is reset (default: 60 seconds; set to 0 for real-time reset).

Edit Logger Model

To edit a logger model:

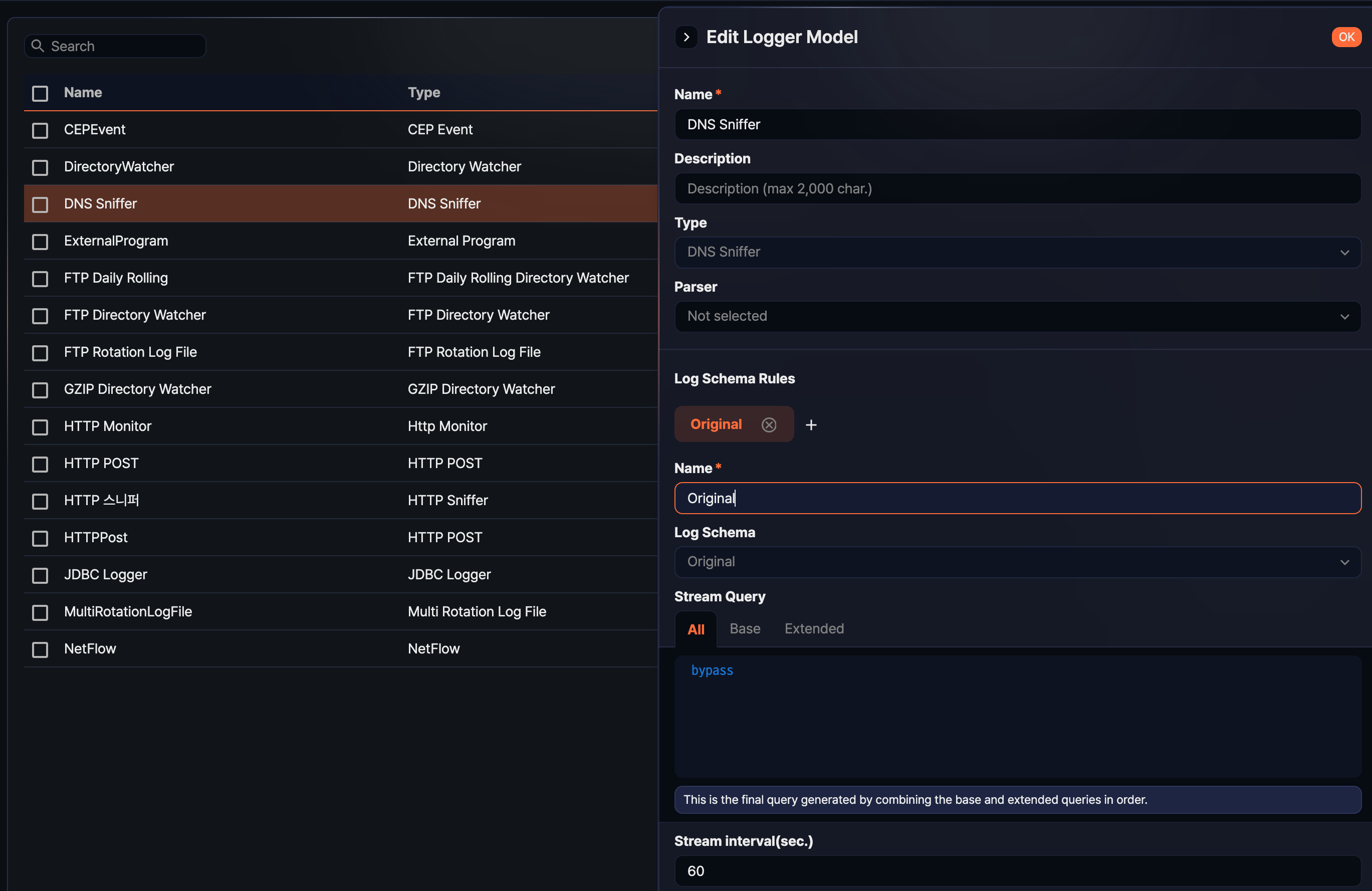

1. Click the Name of the logger model you want to modify.



2. In the Edit Logger Model page, update the necessary information and click OK.

   • For editable properties, refer to Add Logger Model.
   • The Type cannot be modified. To change the it, delete the existing model and create a new one.

Delete Logger Model

To delete a logger model:

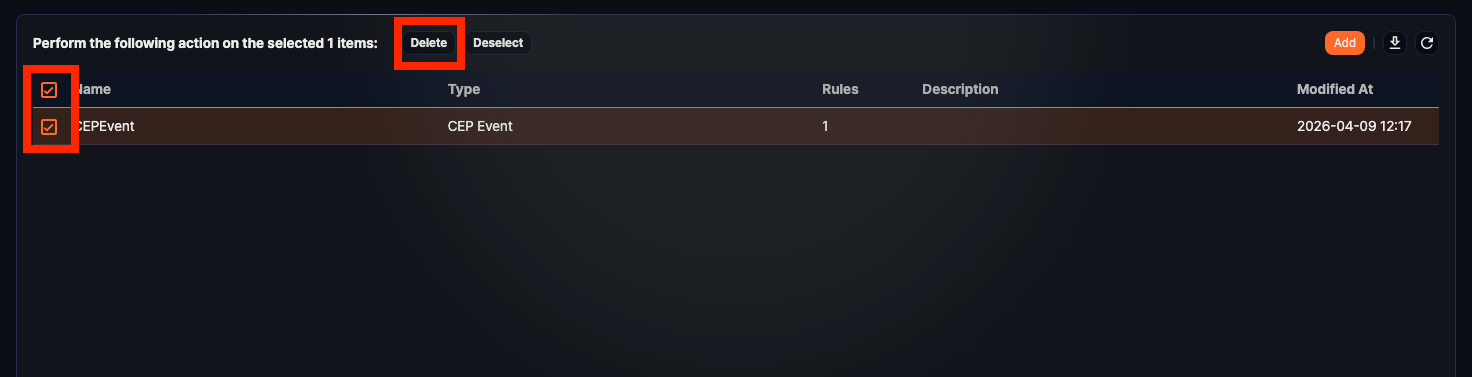

1. Select the checkbox next to the logger model you want to delete.

2. In the toolbar, click Delete.

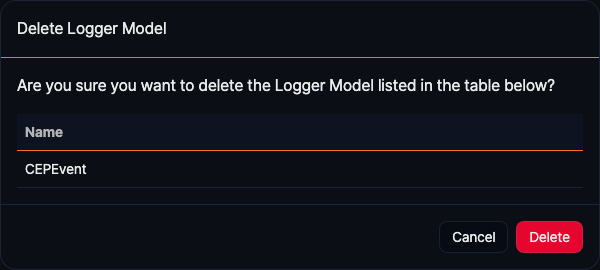

3. In the Delete Logger Model dialog box, review the list of models to be deleted, then click Delete. Click Cancel to cancel the operation.

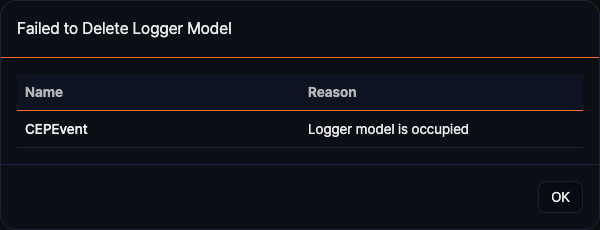

   If the deletion fails, the Failed to Delete Logger Model dialog will show the reason for the failure.
